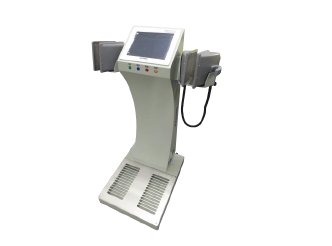

Hand & Foot Contamination Monitors with Frisking Probe
Product details


. Product Introduction

TK-305 Hands & Feet Surface Contamination Monitor is mainly used to do the radiation safe detection of the personnel who work in the radioactive site of the Nuclear facilities. It mainly detects whether the surfaces of personnel’s hands/feet/coats are contaminated by radioactive rays.

If the detected radioactivity is stronger than the pre-set threshold, it will send out the alarm signal and display the contaminated points and its strength. That can avoid the spread of radioactive contamination.

. Main Features

l  Easy & convenient operation

l  A colorful & touch-sensitive LCD screen

l  If detect the contamination, it would send out the alarm signal and display the contaminated points

l  Convenient maintenance without daily work

. Technical Specifications



Detected Rays


Detected   Points

Surfaces of   Hands & Feet & Coats

Input Window   Area of Single Detector

Hand                  354cm2

Foot                   557cm2

Background   Counting

Hand               α <0.1cps; β <15cps

Foot                α <0.2cps; β<40cps



Hand    Sr-90/Y-900.36Am-2410.42

Foot     Sr-90/Y-900.40Am-2410.42


A colorful   & touch-sensitive LCD screen


100~240V AC50/60HZ

Work   Environment

Temperature-5~40     Relative Humidity0~90%

Size & Weight

About 520W×1240H×760Dmm; About 50Kg



. Applications

l  The entrance/exit of control area in different nuclear facilities
