Tritium Monitor
Origin:China
Model:TK-701
Product details


. Product Introduction

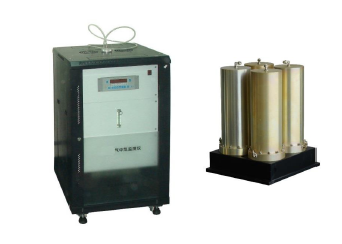

The TAM series of Tritium Air Monitors are comprised of mains unit and ionization chambers. Main unit is a SCM System based on 8031 sing chip system. These Tritium Air Monitors are designed to have a wide variety of features, including automatic control, automatic zero setting, multi-parameter display, data monitoring, processing and storage, and warning and communication. By employing modular design, this series of Monitors provide optional installation and combination suitable for automatic continuous air monitoring for the presence of tritium in the environment, glove box at nuclear facilities, highly radioactive noble gases and in a wide range of situations.

Type

TK-C200

Air   tritium monitor

TK-C400

Wide   range

air   tritium monitor

TK-C600

Identification   type

air   tritium monitor

Detector

Four   cylindrical silk wall ionization chambers with gamma differential   compensation, each with effective volume of 2 L

Silk   wall ionization chambers, each with effective volume of 1 L

Gas-flow   ionization chamber for beta, radon, alpha measurement

Range

40   Bq/L8.0×107   Bq/L

2×102   Bq/L2×1010   Bq/L

0.01105   Bq/L

Precision

Relative   error≤5%

Coefficient   of variance ≤2%

Relative   error≤20%

Coefficient   of variance ≤2%

Intrinsic error≤±10%

Response time

Adjustable,   recommended as 5 min for environmental monitoring

Automatically   adjustable within 3-30s

15min

Discrimination

compensation   coefficient ≥95%

Alarm threshold

Configurable   setting within range

Communication   Interface

RS-485   standard interface, baud rate 19200 bps

Total   weight

20   kg(TAM-500: 75 kg),   detector unit: 15 kgmain   unit: 1.25 kg

Power   supply

AC   220 V ±10%50Hz ±10%power   dissipation ≤ 6 W

Operating  environment

temperature:   0℃﹣50,   relative humidity:  10%90%   at 35

. Technical Specifications

No.

Item

Parameter

1

sensitivity

1μCi/m3(0.05DAC)

2

Accuracy

±0.1μCi/m3 from 1 to 100μCi/m3,

±10% from 100μCi/m3 to 20000μCi/m3 or better

3

Range

1μCi/m3 to 199,999μCi/m3

4

Detector



4 matched chambers. two for measuring and two for   compensation

5

Measuring chamber effective volume



4000cc

(2measuring chambers of 2000 cc each)



6

Flow rate

1.0 L/min

7

Zero stability

±0.1μCi/m3 immediately after unit is powered on or   better

8

Background cancellation

Very effective and efficient background   cancellation of gamma(all energies) radon and noble gases is required.

9

Compensation

Radon compensation should be included in the   software beta other than tritium ,gamma and noble gases compensation is very   essential

10

Ion trap

have

11

Dust filter

replaceable easily

12

Noble gas cancellation

No



13

Tritium discrimination

Instrument can discriminate in a field

14

Purge/decontamination

Detective unit made by New structure ,very low   tritium remember effect.

15

Display

Graphic touch screen LCD display .unit displays   the values

16

Communication

RS485

17

Power supply

220V AC

18

Alarm

Tritium alarms gamma alarms low air flow alarms   will all be shown by red  LED light and   by an audible device

19

Data logging

The tritium and gamma values at logged every   minute with current time and date stamp

20

Response time

a)         seconds~2min(see   tritium readings )

. Applications

  • Nuclear power plant

  • Nuclear research
